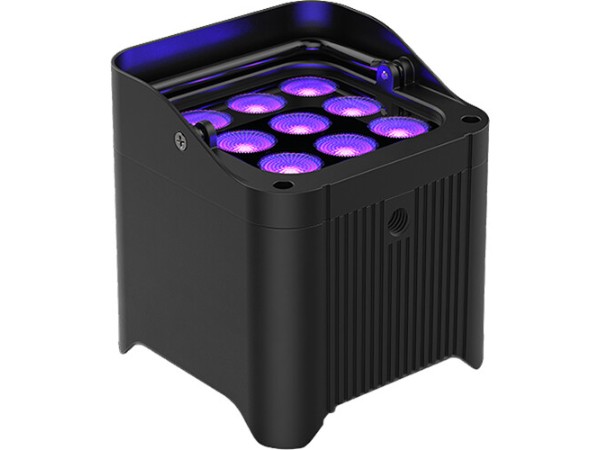

Chauvet DJ Freedom Flex PAR H9 IP Battery Powered LED Upwash Fixture

The Freedom Flex Par H9 IP takes 100% TRUE wireless, battery-operated, hex-color lighting outdoors. This fixture has a built-in D-Fi transceiver for wireless DMX control, as well as a built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes. Its IP rating and robust housing make it suitable for temporary outdoor situations, rain or shine. The par features a more compact form factor and new secondary optics that provide perfect color blending with nearly no artifacts. The OLED display allows for full-text to easily change the fixture’s settings and adjustable run times ensure the fixture will last the length of almost any event.

PRODUCT HIGHLIGHTS:

• 100% TRUE wireless, battery-operated, hex-color LED uplight with built-in D-Fi transceiver
• Robust housing repels mother nature for temporary outdoor situations
• New secondary optics provide perfect color blending with nearly no artifacts
• Magnetic diffuser pops on or off with ease and widens the coverage area
• Adjustable run times ensure the fixture will last the length of the event
• OLED display allows for full-text and to easily change fixture’s settings
• Built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes
• Adjust the projection angle using the spring-loaded kickstand
• Built-in glare shield protects light spillage and eye fatigue
• Extend the fixture’s lifespan with the onboard charge and discharge protection circuitry
• Achieve smooth LED fading with built-in dimming curves
• Compact and lightweight design easily fits inside sticks of TRUSST

SPECIFICATIONS:

• Light Source: 9 LEDs (hex-color RGBAW+UV, 10 W, (5.7A), 50,000 hours life expectancy
• Lumens: 1,258
• Strobe Rate: 1 to 25 Hz
• Beam Angle: 23°
• Field Angle: 46°
• Illuminance: 1249 lux @ 2 m
• Beam Angle (with diffuser): 40°
• Field Angle (with diffuser): 79°
• Illuminance (with diffuser): 432 lux @ 2 m
• DMX Channels: 6, 8 or 16
• Operating Frequency: 2.412 - 2.484 GHz
• Max Unobstructed Distance: 600' (183 m)
• Input Voltage: 24 VDC, 1.5 A (external power supply: 24 VDC, 50/60 Hz)
• Power and Current:
• 50 W, 0.7 A @ 120 V, 60 Hz
• 50 W, 0.4 A @ 230 V, 50 Hz
• Run Time (adjustable): 3, 5, 8, or 12 hrs
• Recharge Time: 3 hours
• Startup Temperature: 4°F - 113°F (-20°C - 45°C)
• Operating Temperature: -22°F - 113°F (-30°C - 45°C)
• Approvals: CE, UKCA, RoHS, FCC
• IP Rating: IP54 Bracket Mounting Hole: M12 Size: 4.7 x 4.7 x 4.9 in (120 x 120 x 126 mm) Weight: 4.6 lbs (2.1 kg)
