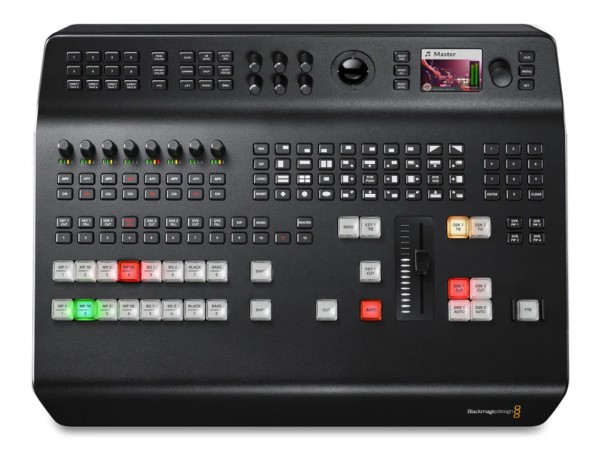

Blackmagic Design ATEM Television Studio Pro 4K

ATEM switchers are professional broadcast grade digital production switchers capable of switching and processing a variety of video sources in live video production and broadcast environments. The switcher uses the current and familiar M/E (Mix Effects) based design with software and hardware control options that provides an intuitive, fast and easy to use workflow for program/preview switching! If you’re used to the older A/B direct switcher style, ATEM switchers also support A/B direct switching which makes it easy to get started!

• Total Video Inputs-8
• Total Outputs-12
• Total Aux Outputs-1
• SDI Rates: 1.5G, 3G, 6G, 12G.
• Total Audio Inputs: 2 x XLR. 1 x Microphone.
• Total Audio Outputs:1 x Headphone.
• SDI Video Inputs: 8 x 10-bit HD/UHD switchable. 2 channel embedded audio.
• HDMI Video Inputs- None
• Reference Inputs- Tri-Sync or Black Burst.
• Video Input Re‑Sync-On all 8 inputs.
• Frame rate and format convertors-On all 8 inputs.
• SDI Program Outputs-9 x 10-bit HD/UHD switchable.
• SDI Audio Outputs-2 Ch embedded into SDI output.
• Total Multi Views-1
• SDI Multi View Outputs-1
• HDMI Multi View Outputs-1
