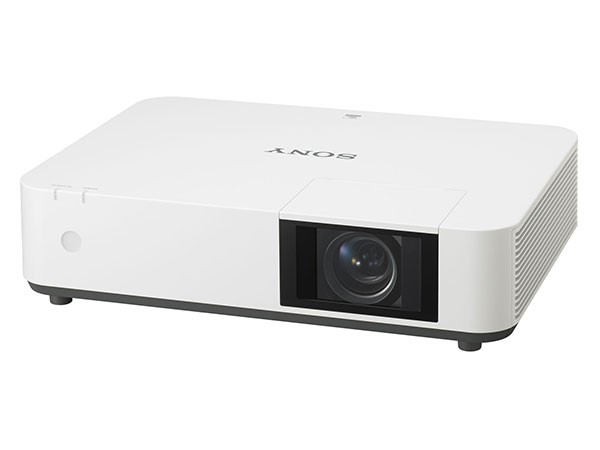

Sony VPL-PHZ10 5,000 Lumen, WUXGA 1920x1200 Laser Projector w/ 1.28-1.88 lens

Rentals starting at


Rent-A-Bit low price guarantee!


Call us or click below to request a quote.

Enjoy bright images in many everyday settings with the Sony VPL-PHZ10 5000-Lumen WUXGA Laser Projector. Its 5,000 lumens of brightness and 500,000:1 dynamic contrast ratio will work together to overcome light in relatively bright rooms and provide detail in dark areas of the image. It sports a 1920 x 1200 WUXGA native resolution for viewing HD video and detailed pictures or data. The projector's 1.27 to 1.89:1 throw ratio and 1.45x manual zoom provide a range of throw distances for focused images.

The VPL-PHZ10 features HDBaseT, VGA, and two HDMI inputs for connecting to nearly any source, while its analog audio input and output will allow you to pass sound through the projector to your sound system of choice. The projector is controllable via the included remote control, Ethernet, or RS-232.


  • Brightness of 5000 Lumens
  • WUXGA (1920 x 1200) Native Resolution
  • 1.27 to 1.89:1 Throw Ratio
  • HDBaseT, VGA, 2 x HDMI Inputs
  • Analog Audio Input and Output
  • Built-In 16-Watt Speaker
  • Ethernet and RS-232 Controllable


Brand Sony
Model VPL-PHZ10


Type Conference Room Projector
Color White
Construction Plastic


Lumens 5000
Native Resolution 16:10
Contrast Ratio 500,000:1
Aspect Ratio Native: 16:10


Lens Throw Ratio - 1.27 to 1.88:1
Lens Shift Manual
Range Vertical +20% to +55%
Range Horizontal +/- 10%
Zoom / Focus Manual
Digital Keystone Horizontal +/- 30 degrees
Vertical +/- 20 degrees
Digital Zoom Optical Zoom - Manual: 1.45x
Lamp Light Source- Laser Diode
Expected Lamp Life - Medium Brightness: 20,000 Hours


Input Connectors INPUT A: RGB / Y PB PR input connector: Mini D-sub 15 pin (female)
Audio input connector: Stereo mini jack
INPUT B: HDMI input connector: HDMI 19-pin, HDCP support
Audio input connector: HDMI audio support
INPUT C: HDMI input connector: HDMI 19-pin, HDCP support
Audio input connector: HDMI audio support
INPUT D: HDBaseT interface connector: RJ45, 4 play (Video, Audio, LAN, Control)
VIDEO IN: Video input connector: BNC
Audio input connector: Shared with INPUT A
Output Connectors 1 x 1/8" / 3.5 mm Mini Audio
Audio Built-In Speaker - (Mono)
Speaker Power - 16W

Physical Information

Power Power requirements: AC 100 V to 240 V, 4.3 A to 1.7 A, 50 Hz / 60 Hz
Full Brightness: 424 W
Medium Brightness: 287 W
Low Brightness: 217 W
Standby Mode (Lamp Off): 0.5 W
Dimensions (WHD) 20.0" x 4.4" x 13.9"
Weight 19.2 lbs.

Special Features

Features Ceiling Mountable
