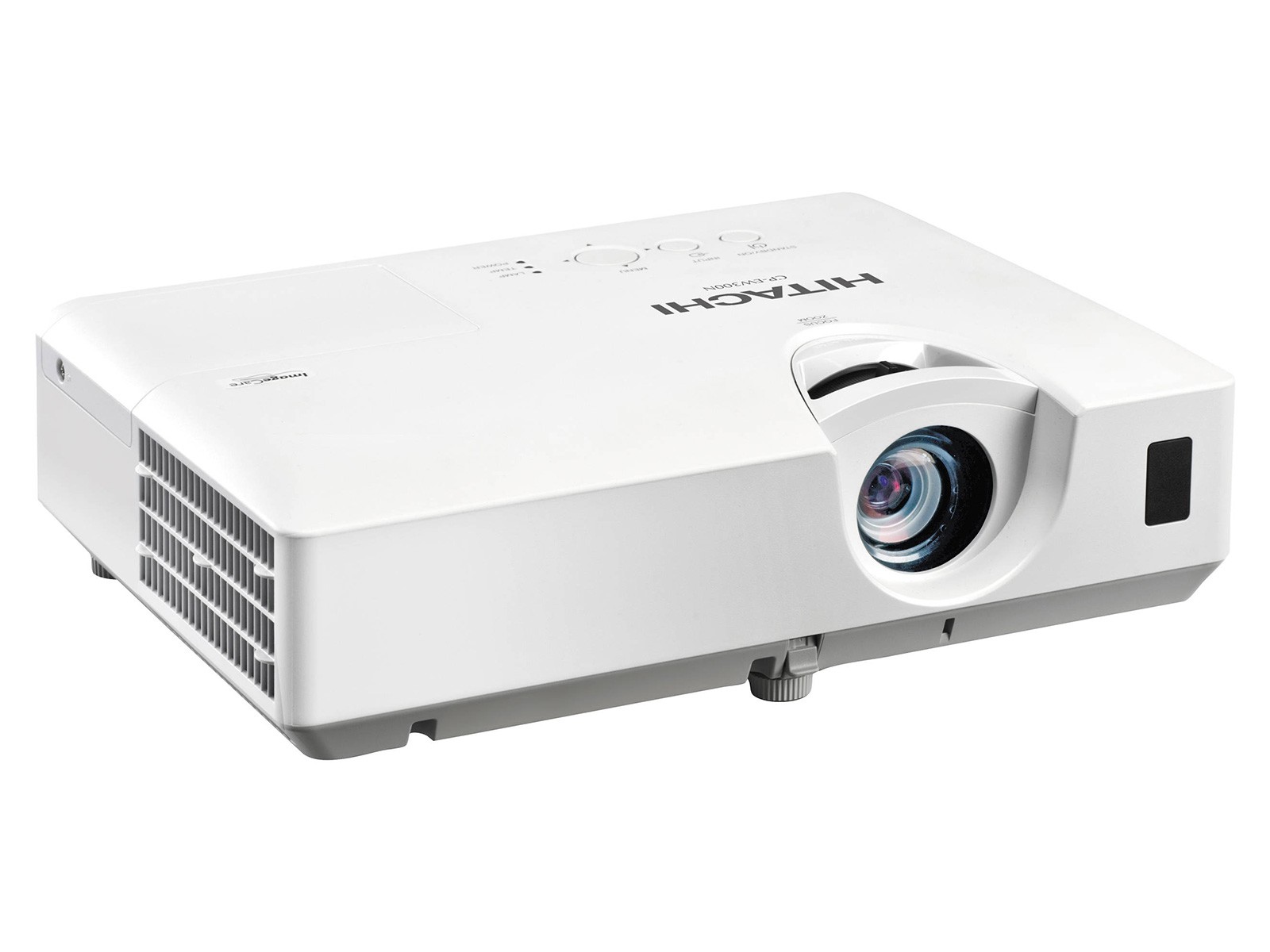

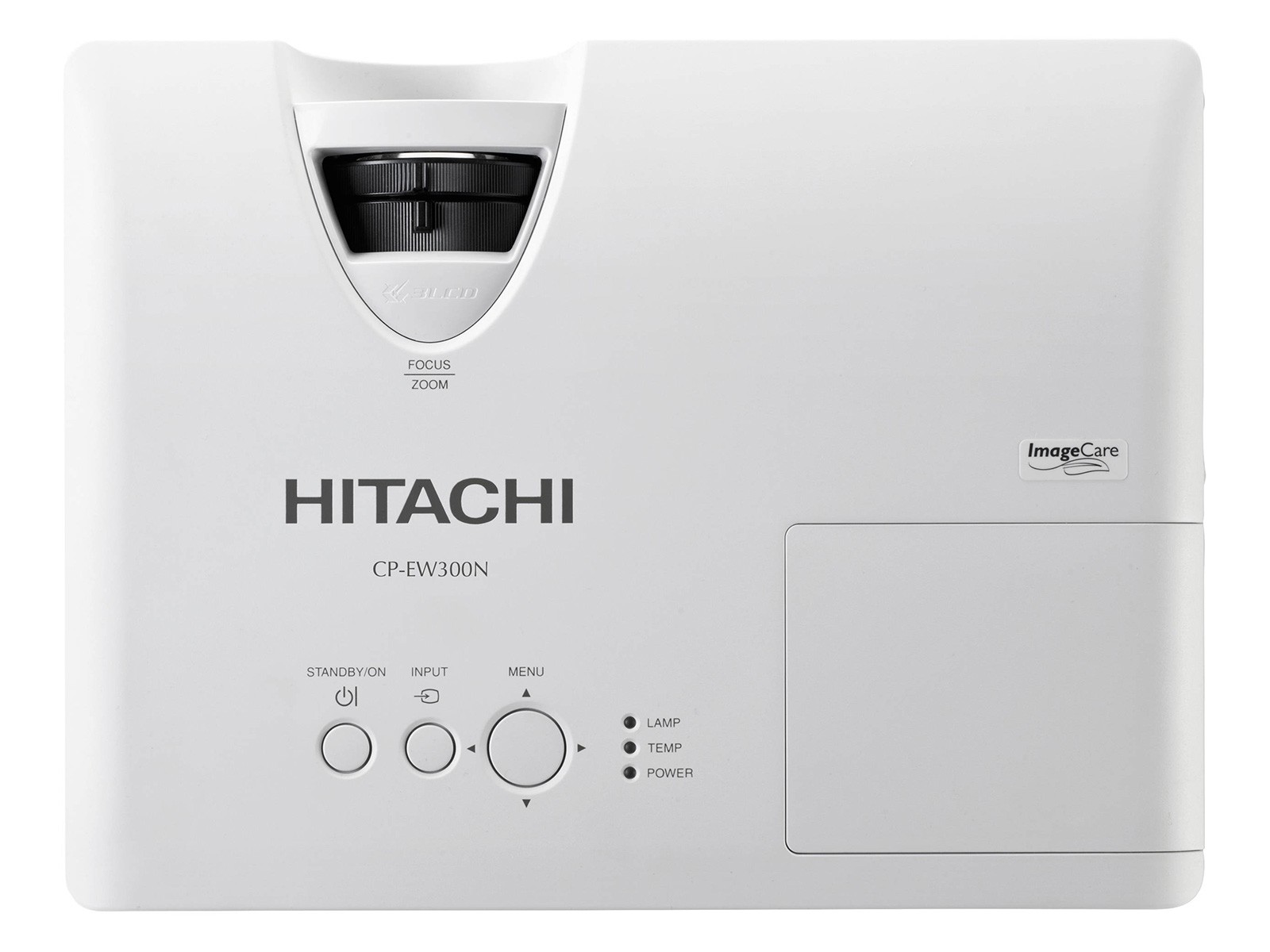

Hitachi CP-EW300N 3,000 lumen WXGA LCD Projector

Rentals starting at


Rent-A-Bit low price guarantee!


Call us or click below to request a quote.

The CP-EW300N LCD Projector from Hitachi is a multimedia projector ideally suited for use in the office or classroom. Its widescreen resolution makes the Hitachi CP-EW300N projector extremely versatile. The projector is HD ready - suitable for watching just about anything. Its relatively modest weight of 6.8 pounds makes the Hitachi CP-EW300N portable, which is a useful when traveling. When you have to set up your projector in a limited period of time, you might be glad to use its vertical keystone correction of +/- 30 degrees.

The LCD projector has a WXGA resolution of 1280 x 800 lumens in a 16:10 format. Its brightness of 3000 lumens is good enough for most environments and its contrast ratio of 2000:1 is satisfactory as well.

The Hitachi CP-EW300N offers the standard connection options: one HDMI input and two VGA inputs, plus a composite video connection for the submission of signals from older video devices. You can control and monitor the projector via RS-232 or Ethernet and the built-in 16W speaker can be connected via audio input; an audio output is available as well.


  • Brightness of 3000 Lumens
  • WXGA 1280 x 800 Resolution
  • 2000:1 Contrast Ratio
  • 6000 Hour Lamp Life in Eco Mode
  • 2000 Hours Filter Replacement
  • 16W Audio Output
  • HDMI, VGA, and Composite Inputs
  • RJ-45 Port for Network Control


  • DT01491 (Replacement Lamp)
  • UX38851 (Replacement Air Filter)


Brand Hitachi
Model CP-EW300N


Type Classroom Projector
Color White
Construction Plastic Housing


Lumens 3000
Native Resolution 1280x800
Contrast Ratio 2000:1
Aspect Ratio 16:10


Lens F = 2.1 - 2.3,
Lens Shift N/A
Zoom / Focus 1.2x manual zoom , manual focus
Digital Keystone Vertical Only
Digital Zoom N/A
Lamp Lamp Life: 4000 hours
Lamp Model: DT01491

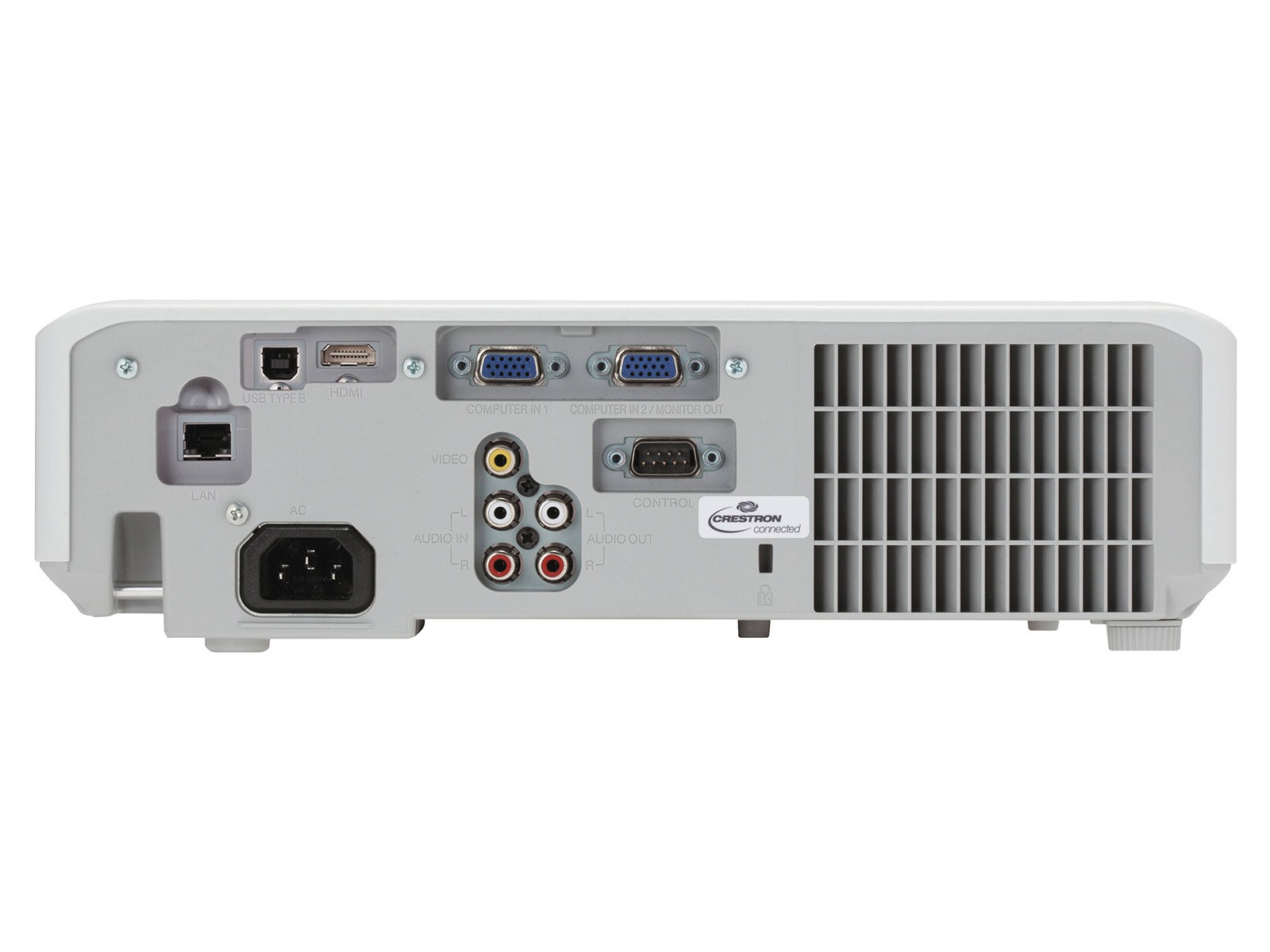

Input Connectors Digital Input: HDMI x 1 (HDCP compliant)
Computer Input 1 15-pin mini D-sub x 1
Computer Input 2 15-pin mini D-sub x 1
Video Input: Composite Video RCA jack x 1
Component Video 15-pin mini D-sub x 2 (shared with computer in 1/2)
Audio Input: RCA jack (L/R) x 1
Network LAN: Wired RJ-45 port (10 base-T / 100 base-TX)
USB Type B: x 1 (mouse control)
Output Connectors Computer Monitor Output Share with Computer Input 2 (settings must be changed to switch between Input 2 and Monitor Out)
Audio Output: RCA jack (L/R) x 1
Audio 16.0W Mono
Supported Formats Computer: VGA, SVGA, XGA, WXGA
WXGA+/SXGA//UXGA (compressed) MAC 16"
H-Sync 31.5 kHz - 106 kHz
V-Sync 56 Hz - 120 Hz
Composite Video: NTSC, NTSC4.43, PAL, PAL-M, -N, SECAM
Component Video: 480i, 480p, 576i, 720p, 1080i, 1080p
HDMI: 480i, 480p, 576i, 720p, 1080i, 1080p,
Computer signal TMDS clock 27 MHz - 150 MHz

Physical Information

Power 330 Watts 100V - 240V
Dimensions (WHD) 12.6" x 3.4" x 9.7"
Weight 6.8 lbs

Special Features

Features RS232 port, closed-captioning, wired networking
Crestron RoomView™
ImageCare is a lamp power control function that combines optimal picture performance with maximum energy savings by decreasing energy usage, improving contrast ratio and lengthening lamp life
