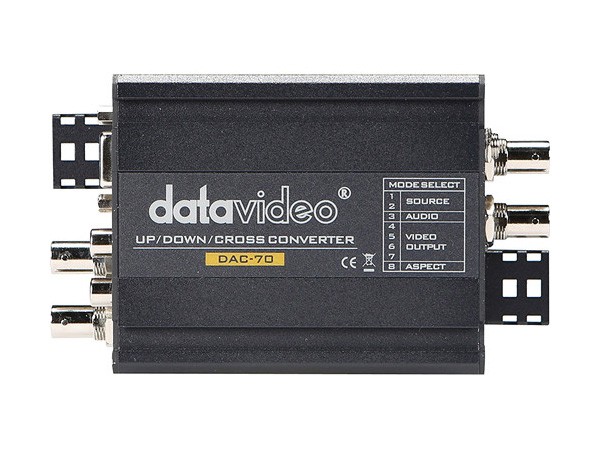

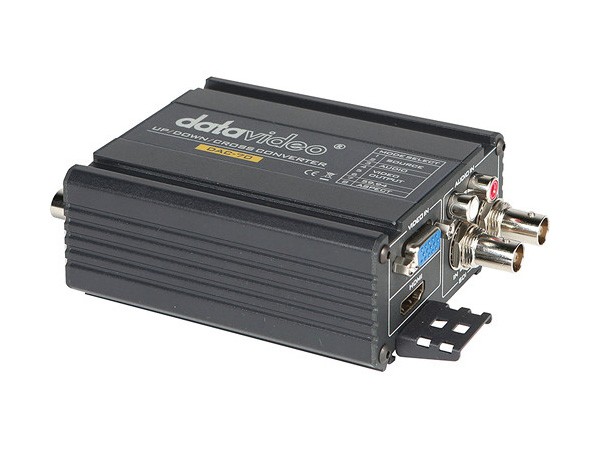

Datavideo DAC-70 3G HD/SD SDI Cross Converter

Rentals starting at


Rent-A-Bit low price guarantee!


Call us or click below to request a quote.

Datavideo DAC-70 up/down/cross converter is designed to convert video signals from VGA, HDMI, SDI with Audio input to 3G/HD/SD SDI ouptuts. Perfect for connecting a VGA/HDMI output from computer to SDI devices over long distance SDI cable. Solutons like lecture theater, church, auditorium room and conference hall.

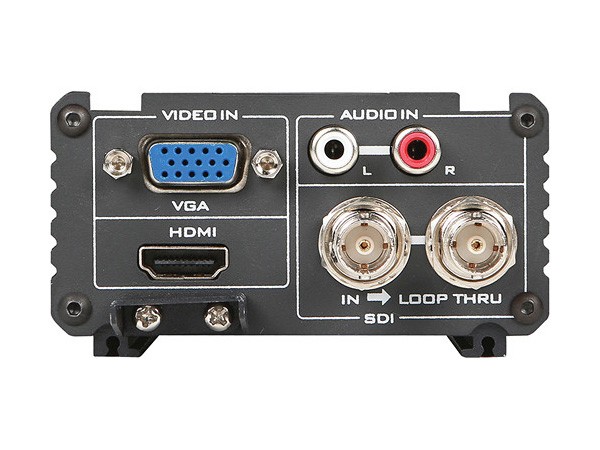

  • Video Inputs VGA, HDMI, SDI, HDMI

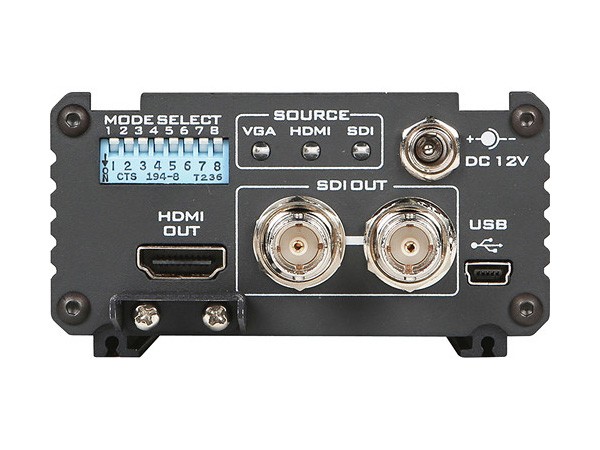

  • Video Outputs SDI, HDMI, SDI Loop thru BNC

  • Analog Audio L/R

  • USB interface for firmware upgrade


Brand DataVideo
Model DAC - 70


Type Up /Down/Cross Converter
Color Black


Input Connectors 1x VGA, 1x HDMI,
1x 3G/HD/SD-SDI (support Level A and Level B)
Output Connectors 2x 3G/HD/SD-SDI with embedded Audio (support Level A and Level B)

Supported Formats

Input Formats 1080p(23.98/24/25/29.97/30/50/59.94/60Hz),
1080psf(23.98/24/25/29.97/30Hz), 1080i (50/59.94/60Hz), 720p (50/59.94/60Hz),
625i, 576p, 576i, 525i, 480p, 480i, 1920x1080(60Hz), 1280x720(60Hz), 1600x1200(60Hz), 1400x1050(60Hz), 1366x768(60Hz), 1280x1024(60Hz), 1024x768(60Hz), 800x600 (60Hz)
Output Formats 1080p(23.98/24/25/29.97/30/50/59.94/60Hz), 1080i (50/59.94/60Hz), 720p (50/59.94/60Hz),
625i, 525i

Physical Information

Power DC 12V, 6W
Dimensions (WHD) 112 x 85 x 45 mm
Weight 0.4 kg

Recommended Uses

Uses Up /Down/Cross Converter
