Datavideo DAC-60 HD/SD SDI to VGA + Audio Converter

Rentals starting at


Rent-A-Bit low price guarantee!


Call us or click below to request a quote.

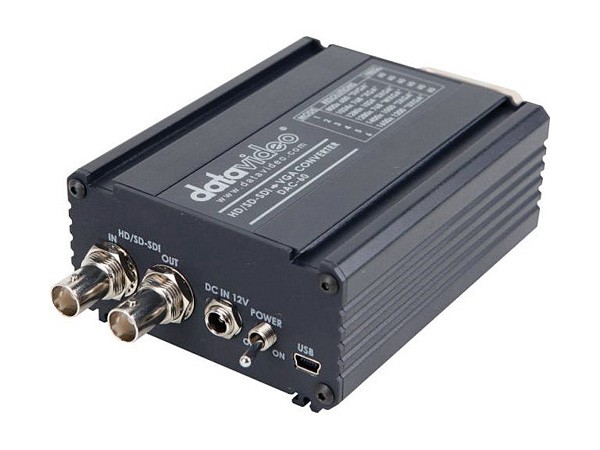

The Datavideo DAC-60 is a HD/SD-SDI to VGA converter. It's designed for use with equipment such as projectors, plasma TV, and LCD screens.


  • Supports Brightness, Contrast, Hue and Saturation of Adjustment

  • Dual output available (SDI & VGA)

  • Supports 3G/HD/SD-SDI

  • Auto 3G/HD/SD-SDI detection

  • VGA Output


Brand DataVideo
Model DAC - 60


Type 3G/HD/SD-SDI to VGA
Color Black


Input Connectors 1x 3G/HD/SD-SDI
Output Connectors 1x VGA

Supported Formats

Input Formats 1080p (23.98/24/25/29.97/30/50/59.94/60Hz),
1080i (50/59.94/60Hz), 720p (50/59.94/60Hz),
576i (PAL), 480i (NTSC)
Output Formats 1920x1200 (60Hz), 1920x1080(60Hz), 1600x1200(60Hz), 1400x1050(60Hz), 1366x768(60Hz), 1280x1024(60Hz), 1280x800 (60Hz), 1024x768 (60Hz), 800x600 (60Hz)

Physical Information

Power DC 12V, 3.6W
Dimensions (WHD) 112 x 85 x 45 mm
Weight 0.4 kg

Recommended Uses

Uses 3G/HD/SD-SDI to VGA
