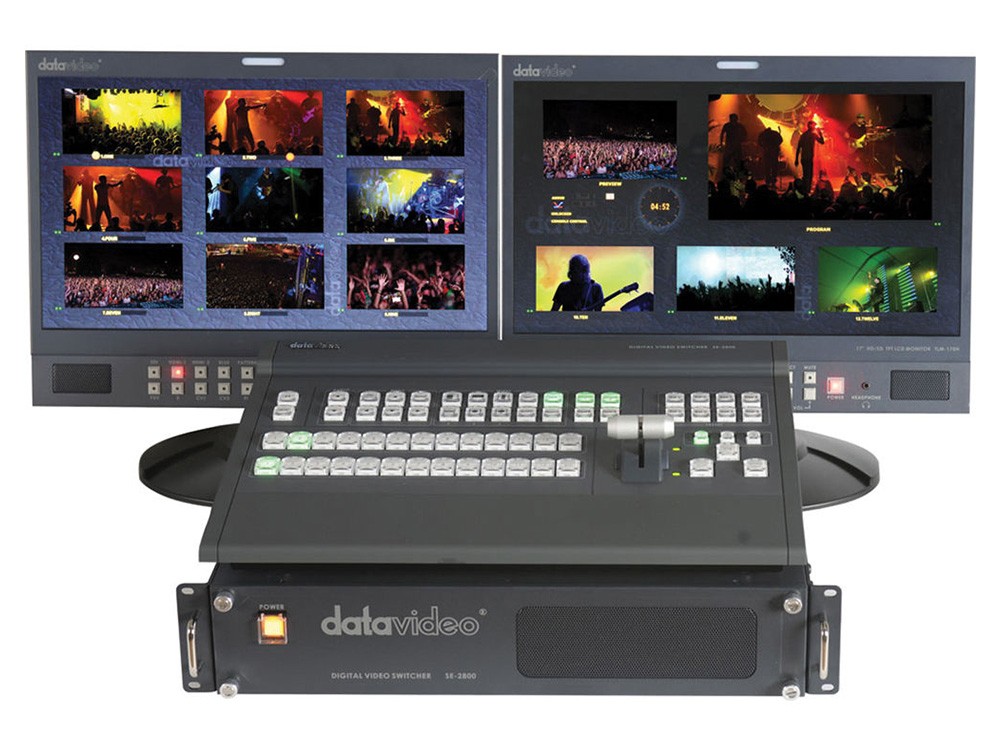

The 2800-8 is an eight input, two piece, simple to operate multi definition video and audio switcher that can switch mixed formats including SDI, HD-SDI, HDMI and composite video and audio. Typical mixed format venues include meetings, presentations, concerts and worship. The SE-2800-8 is a multi-definition switcher designed for venues that require a combination of HD/SD-SDI, HDMI, and composite video sources.
Two configurable HDMI multiview outputs.
(7) pre-stored static logos plus one dynamic logo
Luminance key, image freeze, and fade to black.
Includes four-input audio mixer.
Supports audio-follows-video switching.
Audio inputs are assignable to video inputs
Support embedded audio on SDI and HDMI inputs/outputs
2 PiP’s with borders
On screen clock, countdown timer and audio level monitors
Ethernet port for PC control
PC Control software included (download link on Datavideo site)
|Input Connectors||Standard: 8x SDI, 2x HDMI, 4x CV Max: 12x SDI, 3x HDMI, 6x CV|
|Output Connectors||3x SDI assignable: PGM, PVW, AUX & Clean Out 2x HDMI assignable: PGM & multi-view|
|Input Formats||1080i 50/59.94/60Hz 576i 50Hz
|Output Formats||SDI, HDMI
|Power||DC 12V 48W|
|Dimensions (WHD)||2RU Rack Mount Mainframe|
|Uses||ideal for use in a portable rack unit or in outside broadcast vehicles.|
