Telex MS2002 - 2 Channel Main Station for Wired Intercom System

Rentals starting at


Rent-A-Bit low price guarantee!


Call us or click below to request a quote.

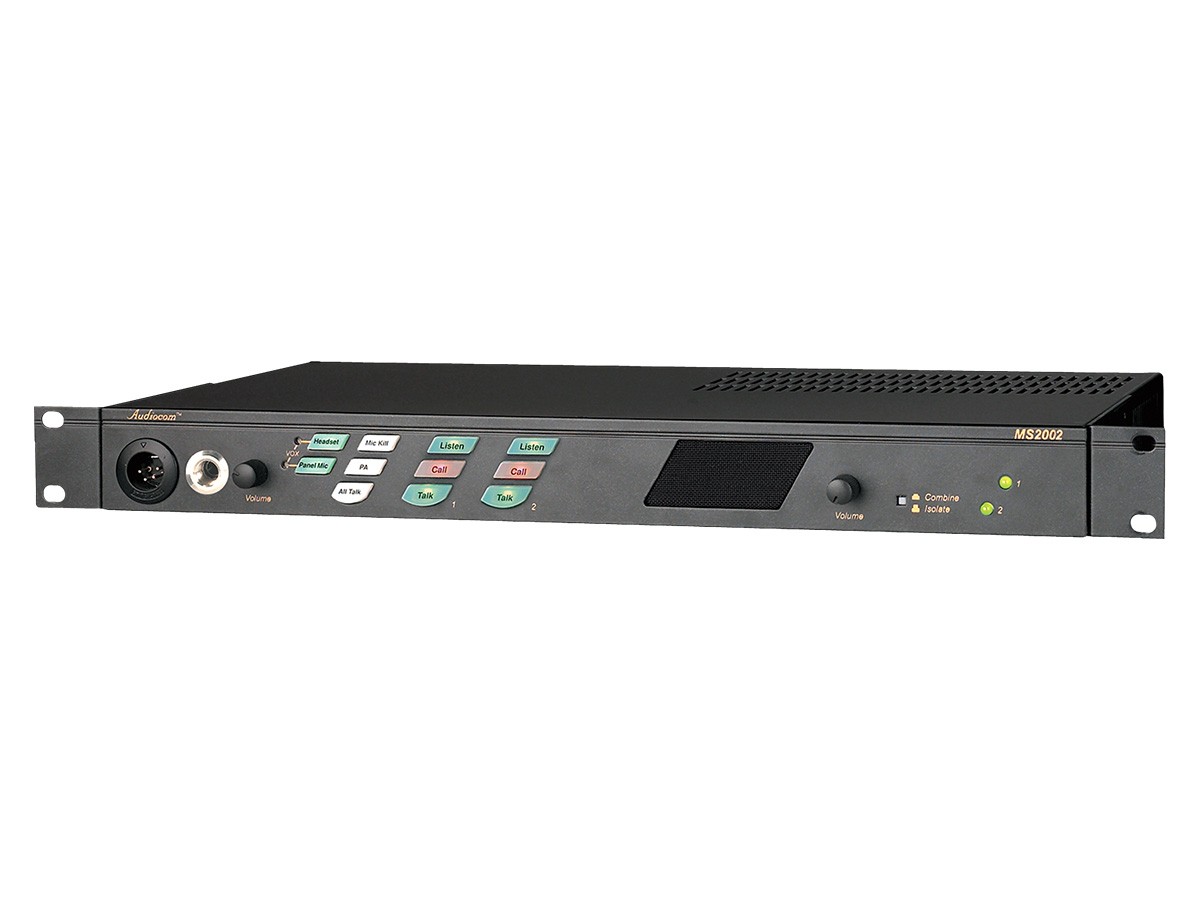

The Telex MS2002 is a professional 2 channel, wired, intercom master station and system power supply, with both 1- and 2-channel rear panel connector sets, dedicated back-lit function buttons, separate speaker and panel microphone volume controls, selectable voice activation controls, and outputs for connection to a location PA system.


  • 2-Channel Main Station and system power supply in single unit with separate 1-channel and 2-channel connector sets; no breakout box required

  • Headset or built-in speaker monitoring with separate speaker volume control

  • Dedicated Voice Activation Microphone(VOX) control set adjusts levels for headset and panel microphone inputs

  • PA output with dedicated selector key for intercom announcements over PA system

  • Back lit keys for improved visibility in low or poor lighting environments

  • Incoming, flashing Call Light indicators with assignable beep tone

  • Mic Kill key turns off all microphones on channel, clears channel

  • Separate line level audio source connection for monitoring or intercom channel routing with assignable channel interrupt when operator is speaking

  • Stereo monitoring available with connectors to powered speakers for independent left/right listening to Channel 1 and Channel 2

  • Universal 100-240 Volt power supply


Brand Telex
Model MS2002


Type Intercom System

Master Station

Input Connectors Front Panel:
4-Pin XLR Male
1/4" TRS Phone

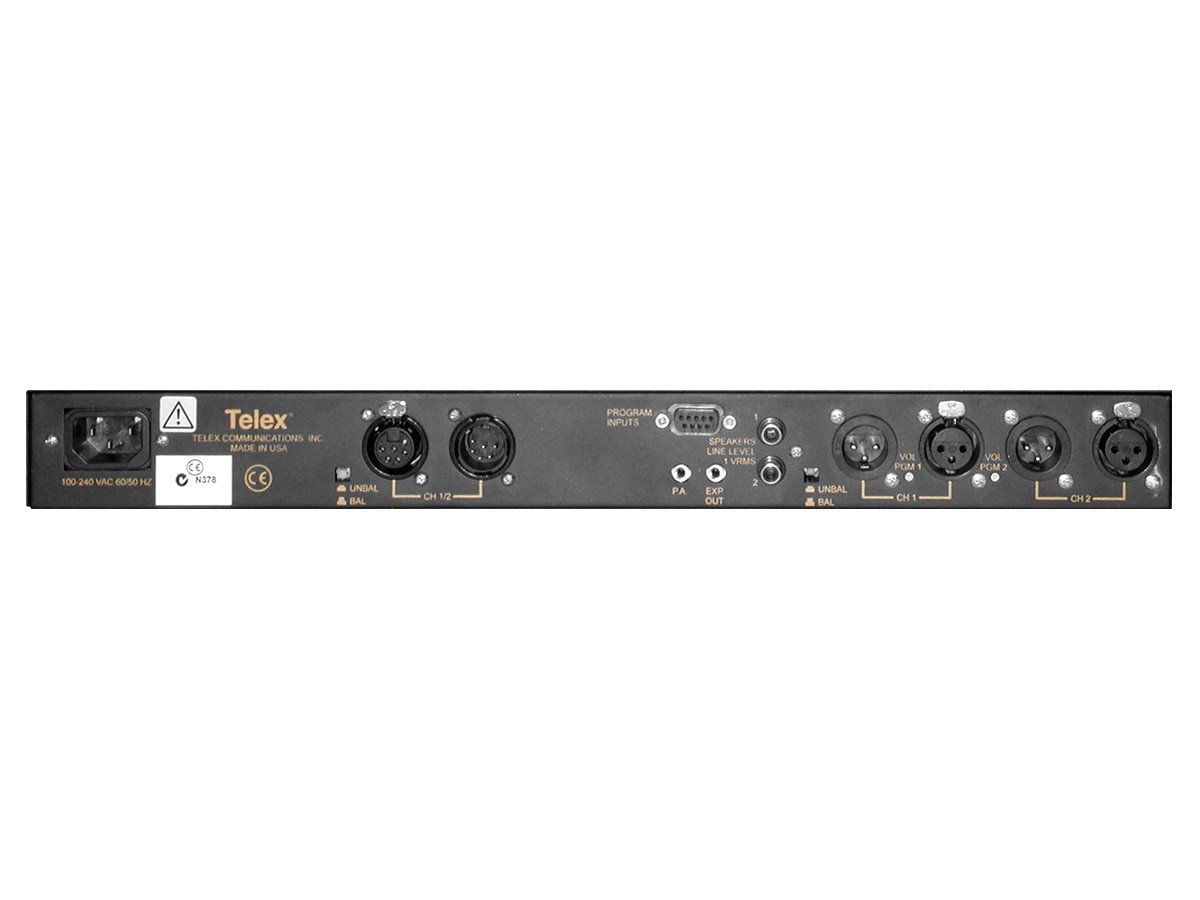

Rear Panel:
2 x 3-Pin XLR Female
1 x 9-Pin Female D-Sub
Output Connectors 2 x 6-Pin XLR Male
2 x 3-Pin XLR Male
2 x RCA Phono
Power A/C Input: 100-240 VAC, 50/60 Hz
Dimensions (WHD) 1.75" H x 19" W x 10.31" D
Weight 4.5 lbs


Input Connectors 1 x 3-pin XLR Female, Balanced
1 x 3-pin XLR Female, Unbalanced
Output Connectors 1 x 4-pin XLR, Male
User Controls 1 x Talk Button
1 x Call Button
1 x Volume Knob
1 x Talk LED Indicator
1 x Call LED Indicator
Dimensions (WHD) 5 x 3.5 x 1.8"
Weight 1.5 lb
Headset 1 x 4-pin XLR, Male


  • XLR Balanced Audio Cable (M-F) x 25'
  • XLR Balanced Audio Cable (M-F) x 50'
  • XLR Balanced Audio Cable (M-F) x 100'

Patch Cables

  • XLR Balanced Audio Patch Cable (M-F)
