Marantz CDR-510 - Dual CD/MP3/CDRW Player, Recorder and Duplicator

Rentals starting at


Rent-A-Bit low price guarantee!


Call us or click below to request a quote.

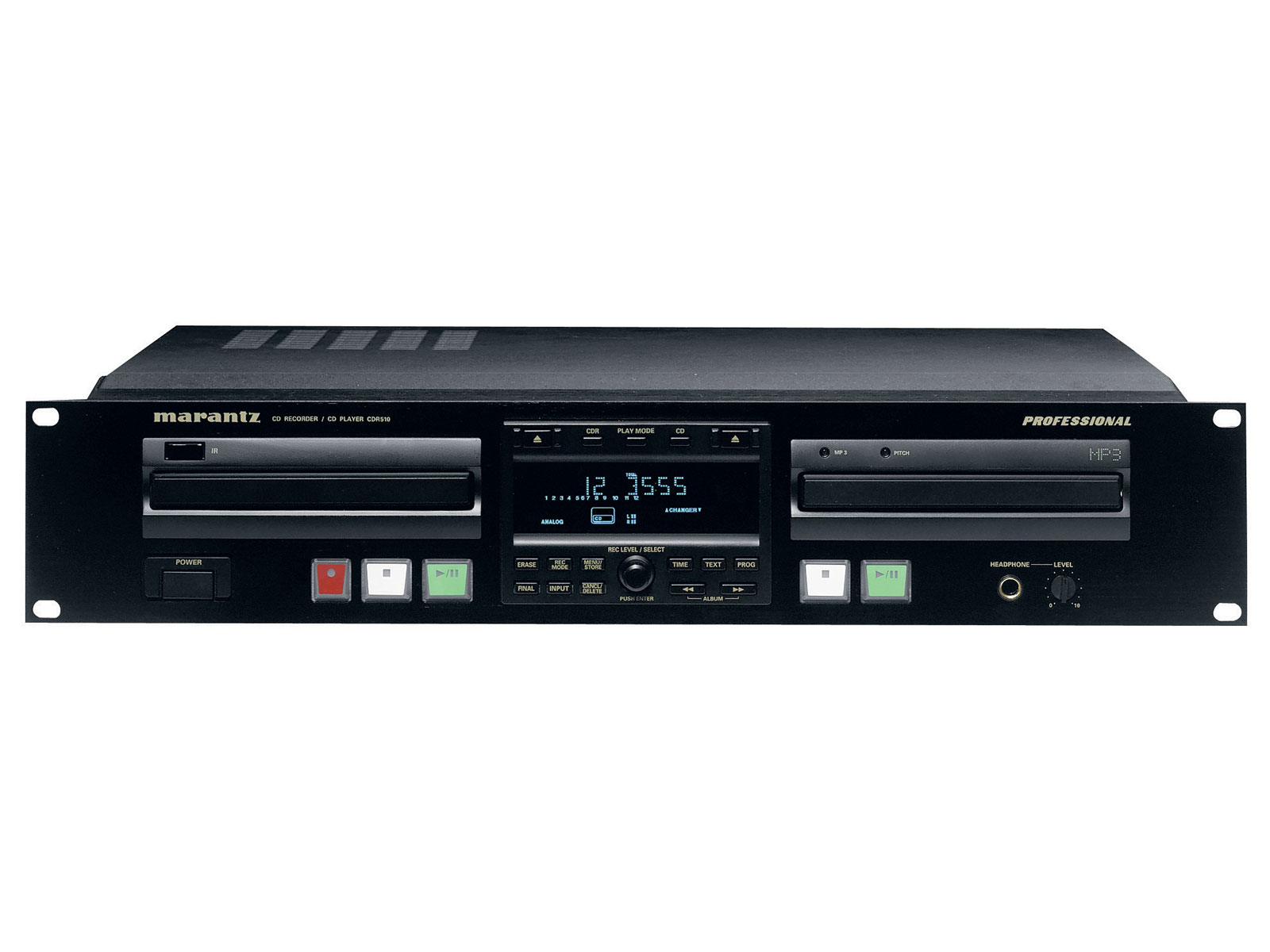

The CDR-510, a rackmountable dual well unit featuring two independent decks. The first is a CDR and CDRW record and playback deck, and the second is a playback deck supporting CDR's, CDRW's and MP3 discs. The wells have completely independent transports enabling simultaneous recording and playback. The CDR-510 also functions as a duplicator, with 2X recording. CD text is read and written, and a menu of track incrementing options has been provided as well. Both XLR and RCA analog connections are included, as are SPDIF and Optical digital I/O's.


  • CDR and CDRW record/playback deck and a playback deck

  • Supports CDR's, CDRW's and MP3

  • Independent transports

  • Simultaneous recording and playback

  • 2X recording

  • Track incrementing options

  • Both XLR and RCA analog connections

  • SPDIF and Optical digital I/O's


Brand Marantz
Model CDR-510


Type Dual Well CD-R/CD-RW player / recorder
Color Black

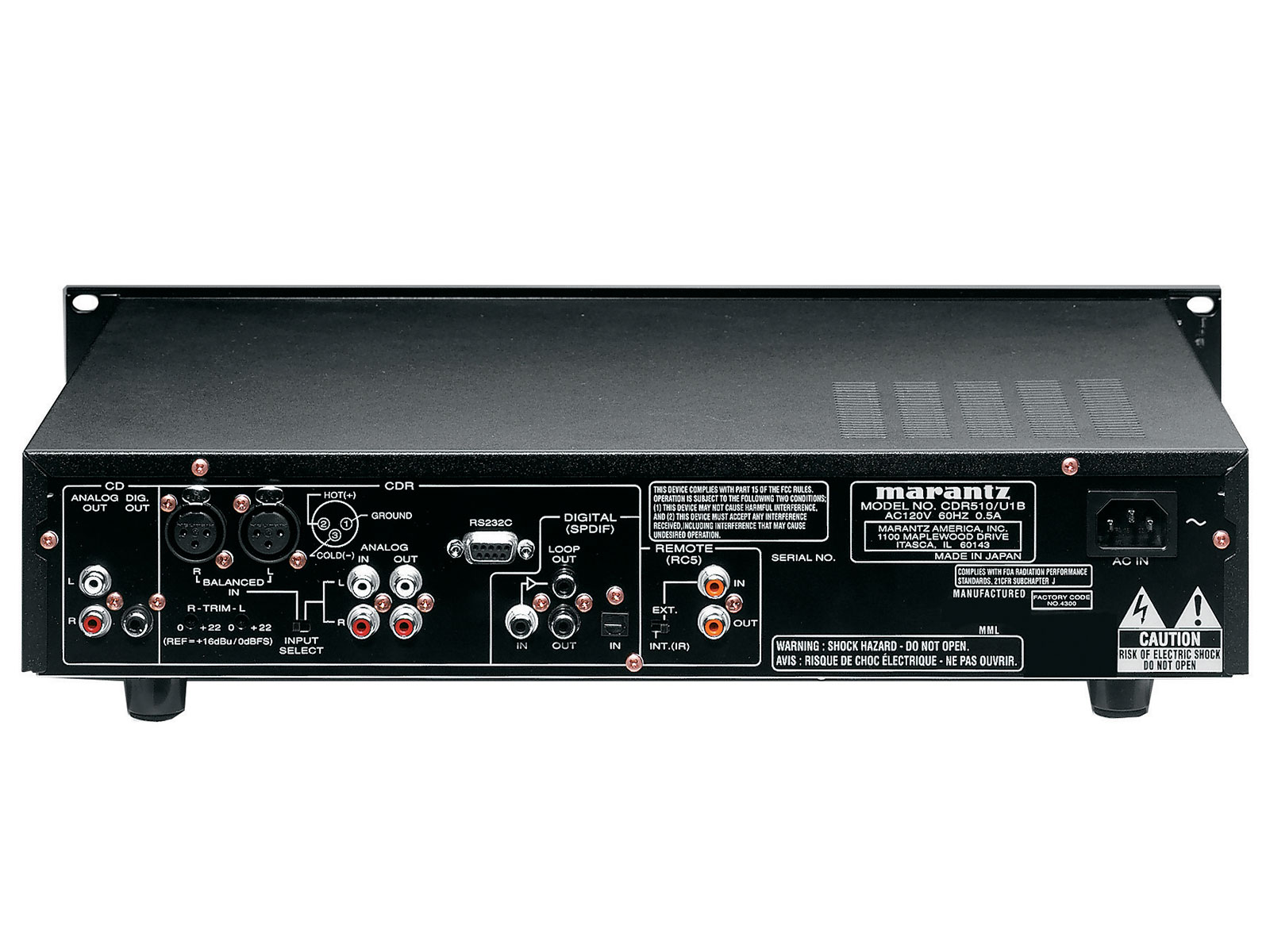

Input Connectors CDR:
2 x XLR balanced input (0- +22db)
2 x RCA Analog input
1 x RS232C
1 x RCA S/PDIF Coaxial (w/ loop out)
1 x S/PDIF Toslink Optical
1 x RC5 Remote
Output Connectors CD:
1 x 1/4" Headphone Jack
2 x RCA line level output
1 x RCA Digital output
2 x XLR balanced input
2 x RCA analog output
1 x RCA S/PDIF Coaxial
1 x RC5 Remote

Supported Formats

Input Formats Red Book CD, CD-R, CD-RW
and MP3 Discs

Physical Information

User Controls LED backlit control buttons
Rotary record level control
Rotary headphone level control
Digital display
Power AC 120V, 60/50 Hz
Dimensions (WHD) 19 x 2.9 x 13.3 inches
Weight 11.7 lbs

Special Features

Features First integrated combination deck to feature totally independent CD recorder full functioning CD player.

Performance Data

Frequency Response 20Hz to 20KHz
Signal/Noise Recorder: 86 dB
Playback: 100 dB
