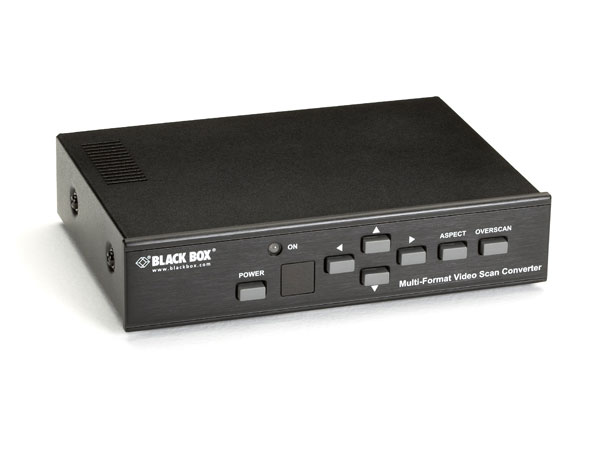

Black Box Multi-Format Video Scan Converter

Rentals starting at


Rent-A-Bit low price guarantee!


Call us or click below to request a quote.

The Video Scan Converter lets you convert your high-resolution computer video into a form suitable for recording on a VCR, displaying on a conventional TV or video monitor, or integrating into a multimedia production system. The Video Scan Converter does not require any special software and operates completely externally from your computer.

  • Downconverts PC and HDTV video for interlaced NTSC/PAL and Component video output.
  • Supports high-resolution PC input up to UXGA (1600 x 1200 at 60 Hz) and HDTV input up to 1080i at 60 Hz.


Brand Black Box


Type Multi-Format Video Scan Converter
Color Creme

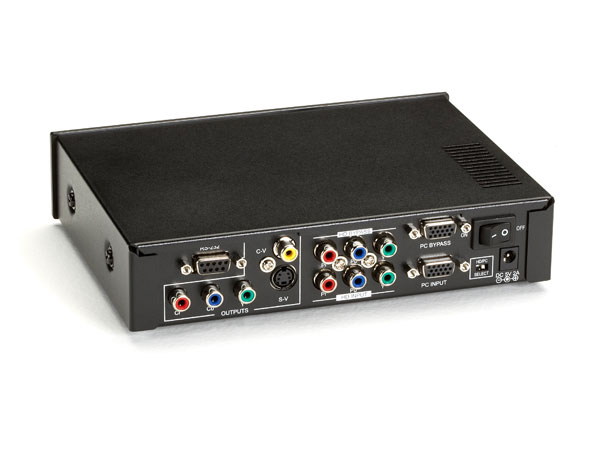

Input Connectors 1 x VGA (PC-HD15)
Output Connectors 1 x RCA-F (Composite video)
1 x S-Video
1 x VGA (PC-HD15) loop out)
1 x DB9 F (RS-232 - control)

Supported Formats

Input Formats PC: VGA at 60–140 Hz; SVGA at 60–120 Hz; XGA at 60–85 Hz; SXGA at 60 Hz; UXGA at 60 Hz;
Output Formats NTSC or PAL interlaced video; YCbCr Component video

Physical Information

User Controls Manual
Power 110–220 VAC, 50–60 Hz, autosensing;
Output: 5 VDC/2 A center: positive
Dimensions (WHD) 8 x 2 x 6 (inches)
Weight 4 lbs

Recommended Uses

Uses Multi-Format Video Scan Converter
