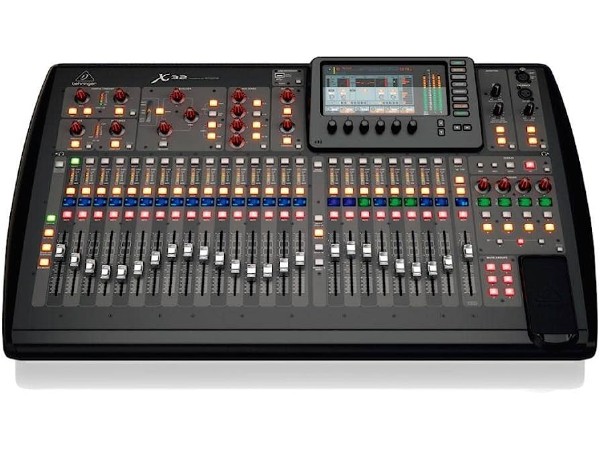

Behringer X32 40-Channel, 25-Bus Digital Mixing Console

Rentals starting at

CALL FOR PRICE

Rent-A-Bit low price guarantee!

800-673-7350

Call us or click below to request a quote.

The X32 40-Channel, 25-Bus Digital Mixing Console from Behringer. The mixer features 32 fully programmable MIDAS-designed mic preamps. The Main LCR (left, center, right) channels, 16 mix busses, and 6 independent matrix mix busses all have 6-band parametric EQs and integrated dynamics processing for excellent sonic tailoring capabilities.

PRODUCT HIGHLIGHTS:

  • Programmable MIDAS-Designed Mic Preamps

  • 6-Band Parametric EQs

  • Digital Snake Ready

  • 32x32 FireWire/USB Audio Interface Card

  • Virtual FX

  • 40-bit Floating-Point DSP

  • 7" Color TFT Display

  • Motorized Faders

  • USB Flash Connector

  • Networked Remote Control

Manufacturer

Brand Behringer
Model X32

General

Channels 40 Channels
Type Digital Mixing Console

Connectivity

Input Connectors Inputs - Mic Preamps: 32 x XLR
Phantom Power: 32 x Channels
Inputs - Other: 2 x RCA (Aux), 6 x 1/4" TRS (Aux)
Inputs - Digital: 2 x AES50, 32 x USB (96 Total Channels)
Output Connectors Outputs - Main: 16 x XLR
Outputs - Other: 1 x AES/EBU, 2 x RCA (Aux), 6 x 1/4" TRS (Aux)
Outputs - Digital: 1 x AES/EBU (XLR), 32 x USB, 2 x AES50 (32 via Optional Digital Snake)
Aux Sends: 16 x Aux Sends

Physical Information

Dimensions (WHD) 35.4" x 7.9" x 20.8"
Power Switch-mode power supply Autorange 100-240 V (50/60 Hz)
Power consumption 120 W
Weight 45.4 lbs.

Performance Data

Frequency Response Frequency range, 10 Hz - 22 kHz @ 48 kHz sample rate, 0 dB to -1 dB
Impedence Output impedance, XLR, unbal. / bal. 75 Ω / 75 Ω
Input impedance TRS Jack, unbal. / bal. 20 kΩ / 40 kΩ
Max Output Level Output level, XLR, nom./max. +4 dBu / +21 dBu

Cabling

  • XLR Balanced Audio Cable (M-F) x 25'
  • XLR Balanced Audio Cable (M-F) x 50'

Electrical

  • IEC Power Cord

Patch Cables

  • XLR Balanced Audio Patch Cable (M-F)
  • 1/4" Phono TS (Instrument) Patch Cable (M-M)
  • 1/4" Phono TRS Patch Cable (M-M)
  • XLR Balanced Audio to 1/4" Phono (TRS) Patch Cable (M-M)

Consumables
