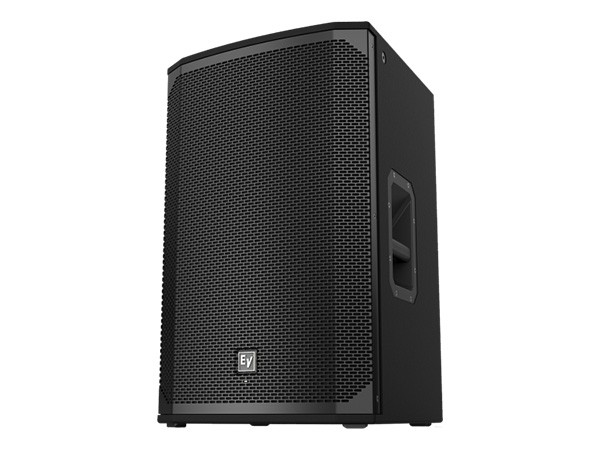

Electro-Voice EKX15PUS 1500W Powered 15" 2-Way Speaker

Rentals starting at

$75.00

Rent-A-Bit low price guarantee!

800-673-7350

Call us or click below to request a quote.

1500 watts of Class-D power, The EKX-15P takes advantage of EV’s patented Signal Synchronized Transducer (SST) waveguide for enhanced pattern control. The EKX-15P enclosure is constructed of lightweight, compact, and durable 15 mm plywood, providing a warm sound, consistent resonance, and strong projection. The powdercoated grill is fabricated from 18 AWG steel to securely shield the cabinet’s contents while the durable EV coat, protects the rest.

PRODUCT HIGHLIGHTS:

  • Frequency Response (-3 dB): 55 Hz - 18 kHz

  • Frequency Range (-10 dB): 48 Hz - 20 kHz

  • Maximum SPL: 134 dB

  • Coverage (H x V): 90 x 60 degrees

  • Power Rating: 1500 W

  • Connectors: (1) Stereo RCA input, (2) XLR/TRS combo jack, and (1) XLR link output

  • Enclosure: 15 mm, plywood with EVCoat

  • Grille: 18 AWG steel with powdercoat

  • Suspension: (8) M10 threaded mounting points

  • Dimensions (HxWxD): 27 x 17 x 17 inches (685x432x429mm)

  • Weight: 24.4 kg (53.9 lb)

  • Power Consumption: 1.8 A

Manufacturer

Brand Electro-Voice (EV)
Model EKX-15P

General

Type 2-Way Powered Speaker
Color Black

Connectivity

Input Connectors 1 x 2RCA Input (Line Input)
2 x Combo XLR-1/4" (Mic/Line input)
Output Connectors 1 x XLR (Thru/Output)

Performance Data

Frequency Response 48 Hz to 20 kHz -10 dB
55 Hz to 18 kHz -3 dB
Coverage 90° H x 60° V
Max SPL 134 dB
Amplifier Power (W) 1500 W

Physical Information

User Controls Separate gain and EQ rotary controls
Dimensions (WHD) 27 x 17 x 16.9"
Weight 54 lb
Construction 15mm plywood with EV coat and 18 gauge steel grille

Cabling

  • XLR Balanced Audio Cable (M-F) x 25'
  • XLR Balanced Audio Cable (M-F) x 50'

Electrical

  • IEC Power Cord

Consumables
