Shure ULXD4Q-G50 Prof. Digital Wireless Microphone System - COMBO

Rentals starting at

$300.00

Rent-A-Bit low price guarantee!

800-673-7350

Call us or click below to request a quote.

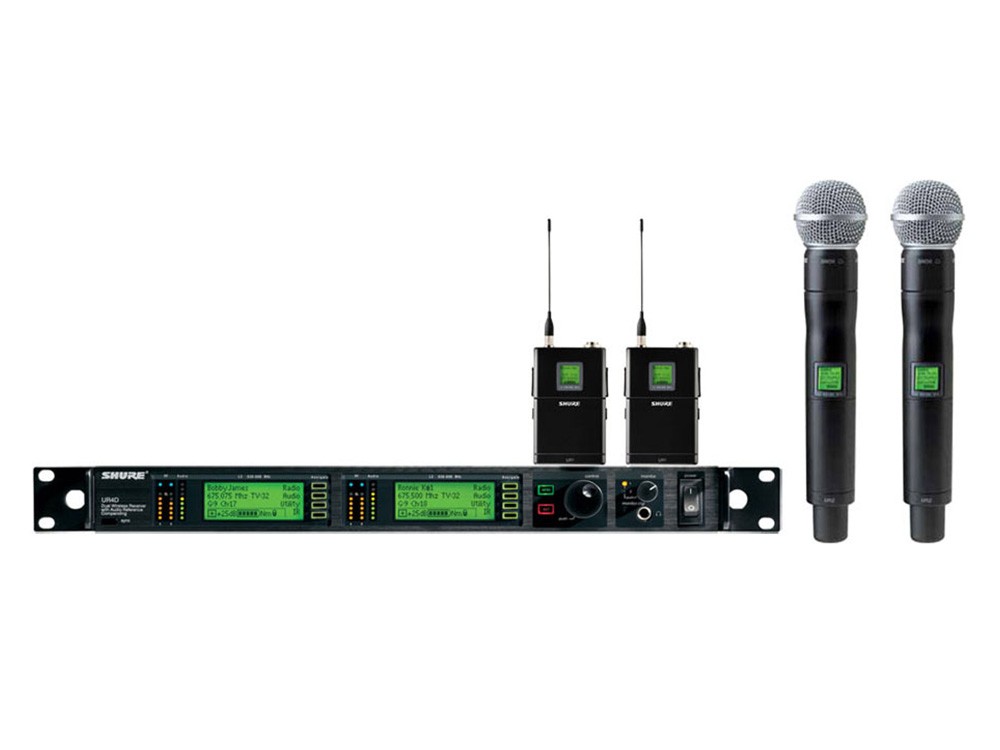

The Shure UHF-R Professional Diversity Wireless Microphone System reinforces Shure's status as leaders in large-scale touring and fixed installation wireless microphone systems. The UHF-R series is primarily designed for touring, stage performances, fixed installation in large clubs, theaters, houses-of-worship, large scale presentations and more.

PRODUCT HIGHLIGHTS:

  • J5 / 578-608, 614-638MHz
  • UR4D+ Dual Diversity Receiver
  • UR1 Bodypack Transmitter x2
  • Simultaneous Dual Transmitter Operation
  • 2400 Selectable Frequencies
  • Automatic Transmitter Setup
  • Switchable RF Power
  • 2x AA Battery Power for 9 Hours

Manufacturer

Brand Shure
Model ULXD4Q-G50

General

Type UHF
Color Black
Construction Galvanized Steel

Receiver Connectivity

Output Connectors 1 x XLR connector (into 600 Ω load)
1x 6.35 mm (1/4") connector (into 3 kΩ load)

Receiver Performance Data

Frequency Response 25 Hz – 15 kHz, ±2 dB

Note: Dependent on microphone type
UHF Band Available options in stock:
G3E (470-506 MHz)
J2 (554-590 MHz)
K2E (606-642 MHz)
M2 (662-698 MHz)
R4 (784-820 MHz)
S3 (829-865 MHz)
Q2 (748-784 MHz)
Operating Range (FT) 100 m (300 ft) typical

Note: Actual range depends on RF signal absorption, reflection and interference.

Receiver Physical Information

User Controls Scan and sync® instantly and automatically sets up the system
Power 14–18 V DC (negative ground), 550 mA
Dimensions (WHD) 43 x 214 x 163 mm (1.72 x 8.56 x 6.52 in.), H x W x D
Weight 1049 g (2 lbs, 5 oz.)

Body Pack Transmitter

RF Output (mW) 1-20 mW
Gain Adjustment 20 dB
Polar Pattern WL185 (super cardioid)
Battery Type/Life 2 x "AA" size alkaline batteries / up to 11 hours
Dimensions (WHD) 2.6" x 3.4" x 0.9"
Weight 5.0 oz

Handheld Transmitter

RF Output (mW) 1-20 mW
Gain Adjustment 20 dB
Polar Pattern SM58 (cardioid)
Battery Type/Life 2 x "AA" size alkaline batteries / up to 11 hours
Dimensions (WHD) 10.1" x 2.0"
Weight 12.0 oz

Patch Cables

  • XLR Balanced Audio Patch Cable (M-F)

Audio Components

  • Shure UA874US Active Directional Antenna (470-698 MHz)
  • Shure UA844SWB Antenna / Power Distribution System (470-952 MHz)
  • Shure UA221 Passive Antenna Splitter
  • JTS CM-8015F Lightweight Single Ear Hook Microphone (Beige)
  • Shure WL185 Lavalier Condenser Microphone
  • Universal Microphone Clip for Vocal Microphones
  • Shure WL93 Lavalier Condenser Microphone
  • Voice Technologies VT600T IFB Earphone w/ Coiled Trans. Tube - Beige
  • Shure ULXD1 Wireless Bodypack Transmitter
  • Shure ULXD2/SM58-Wireless Microphone Transmitter

Consumables

  • Procell™ AA Alkaline Battery
