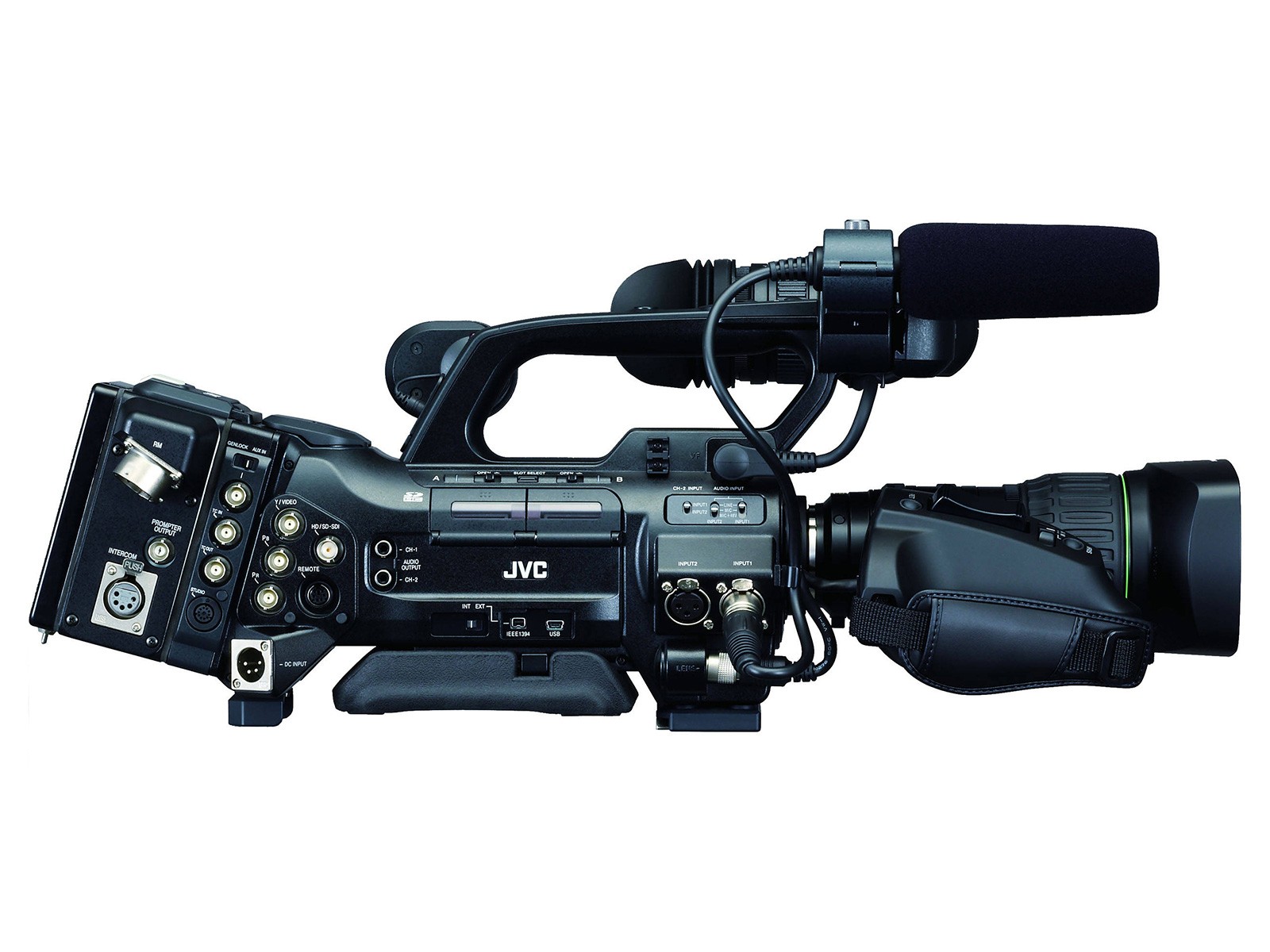

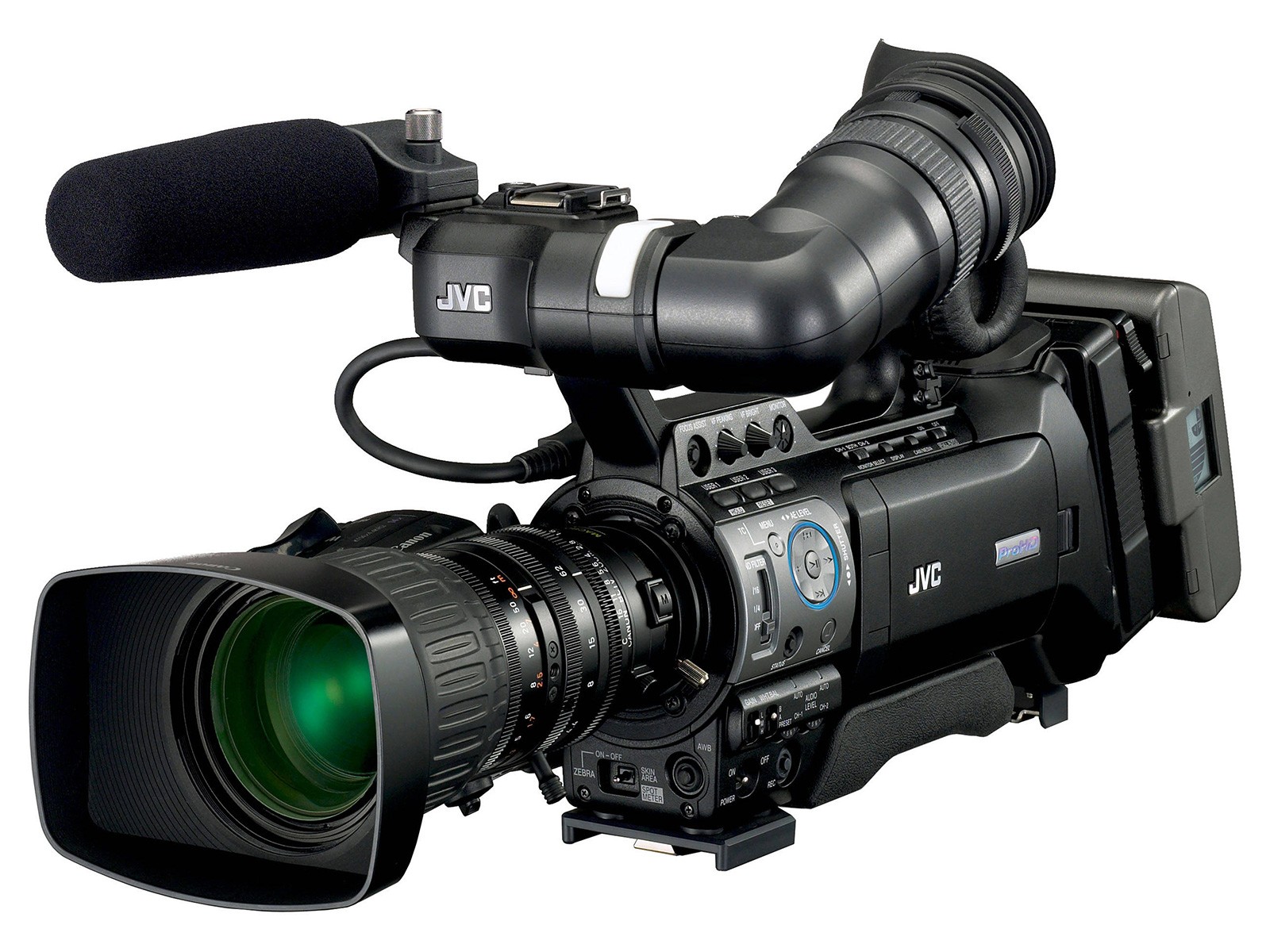

JVC GY-HM790U ProHD ENG / Studio Camera w/Canon 14x Lens
Rentals starting at
$450.00
Rent-A-Bit low price guarantee!
Call us or click below to request a quote.
The JVC GY-HM790U ProHD ENG / Studio Camera is a modular, 1/3" shoulder-mount video camera that comes with a Canon 14x zoom and is equally at home in the studio or in the field. Capable of recording 1080i/p, 720p, and 480i video to native MP4 or Final Cut Pro files for the most efficient workflow, the GY-HM790U also offers a full complement of broadcast features, including HD-SDI output, 4:2:2 sampling, timecode, genlock, and variable frame rates.
Its ability to record to dual, hot-swappable SD/SDHC cards means affordable access to readily available media, which can be coupled with an optional SxS recorder for extended or backup capture. Optional studio components add another layer of professional functionality, placing the GY-HM790U in truly the best of both worlds.
PRODUCT HIGHLIGHTS:
- 1/3" Progressive 3CCDs
- Modular Studio/Field Design
- Bayonet Lens Mount
- 4:2:2 Color Space, Up to 35Mbps Bitrate
- 1080i/p, 720p, 480i Multi-scan
- Native MOV & MP4 Recording
- Dual SD/SDHC Slots
- Timecode & Genlock
- HD/SD-SDI, FireWire Output
Manufacturer
| Brand | JVC |
| Model | GY-HM790U |
General
| Color | Black/Grey |
| Format | 3CCD |
| Type | ENG Studio Camera |
Connectivity
| Audio | 2X XLR switchable mic/line inputs (phantom powered) 2X onboard mini-jack audio monitoring outputs |
| Input Connectors | Analog Composite input: 1.0V (p-p), 75-ohms, BNC (unbalanced: switchable from Genlock Input) |
| Output Connectors | Analog Composite output (downconverted 480i or 576i, 4:3/16:9): 1.0V (p-p), 75-ohms, BNC (unbalanced; switchable from analog component Y output) Analog Component output (downconverted 480i or 576i; 720p /1080i) : BNC x3 (unbalanced) Y: 1.0V (p-p), 75-ohms Pb, & Pr: 0.7V (p-p) 75-ohms SDI output (downconverted 480i or 576i / 720p /1080i: embedded audio) BNC (unbalanced) HD-SDI: Compliant with SMPTE 292M / SD-SDI: Compliant with SMPTE 259M |
Supported Formats
| Input Formats | Video codec: MPEG-2 Long GOP File Format: Quick time format for Final Cut Pro/mp4 file format |
| Output Formats | Analog Composite output (downconverted 480i or 576i, 4:3/16:9): 1.0V (p-p), 75-ohms, BNC (unbalanced; switchable from analog component Y output) Analog Component output (downconverted 480i or 576i; 720p /1080i) : BNC x3 (unbalanced) Y: 1.0V (p-p), 75-ohms Pb, & Pr: 0.7V (p-p) 75-ohms SDI output (downconverted 480i or 576i / 720p /1080i: embedded audio) BNC (unbalanced) HD-SDI: Compliant with SMPTE 292M / SD-SDI: Compliant with SMPTE 259M |
Optics
| Lens | Standard: Canon KT14X4.4KRSJ 14X HD ENG Lens Optional: Canon KJ20x8.2B 20x HD ENG Lens with 2x Zoom Extender |
| Max. Shutter Speed | 1/6 to 1/10000, EEI |
| Min. Illumination (lux) | 1.25lx (typical) (1920x1080 mode, F1.4, +18dB, with 8-frame accumulation) |
| Min. Shutter Speed | 1/6 to 1/10000, EEI |
| Native Resolution | 1920 X 1080 |
| Optical Sensor | 1/3" Progressive scan 3CCD |
| White Balance | Manual or Preset |
| Zoom / Focus | Canon F1.6, 14x, f=4.4-61.6mm (35mm conversion:32 to 448mm) |
Physical Information
| Accessory Shoe | Yes |
| Card Slot | SDHC memory card (Class 6 or Class 10), 2 slots |
| Dimensions (WHD) | 9 9/16 X 9 9/16 X 20 9/16 |
| Illumination System | Available |
| LCD Monitor | LCD display 4.3” LCD, 800 x 480 (WVGA, 410,000 pixels) Viewfinder 0.45” LCOS, 1,226,000 pixels (852 x 480 x 3) |
| Mounting | Industry standard bayonet lens mount |
| Power | Power consumption: Approx. 27W (Recording mode with standard lens and LCD monitor in use) |
| User Controls | Assignable |
| Viewfinder | High resolution (1.22 million pixel) Liquid Crystal on Silicon (LCOS) viewfinder Large (4.3-inch) flip-out LCD monitor |
| Weight | Approx. 3.7kg (GY-HM790U-CHU) / Approx. 3.9kg (GY-HM790E/CHE) (Including lens, viewfinder, microphone, battery) |
Special Features
| Features | ■ The GY-HM790U is an ergonomic shoulder-mount camcorder ideal for ENG applications. ■ Both HD or SD recording. MOV file format for Apple Final Cut ProTM in both HD and SD modes. XDCAM EXTM-compatible MP4 file for HD and DV-based AVI format for SD in Windows NLE systems. ■ Genlock input and time code input/output available for multi-camera operation. ■ Switchable aux input from genlock useful for pool feed applications. |
Recommended Uses
| Uses | Studio, Live events, webcasting, video recording for professional editing. |
Video Components
- Manfrotto 524CFI Intelligent Zoom Control for Fujinon Lens
- JVC Rear Manual Focus Ring Control for ENG Lenses
- Anton Bauer DIONIC-HC LI-ION 85WH/14.4V Battery
- Anton Bauer Tandem 70MT 70W Charger / Power Supply
- JVC Tripod Plate / Adapter Kit
- JVC HZ-ZS13U Rear Servo Zoom Control for Canon and Fujinon Lenses
- Canon KT14X4.4KRSJ 14X HD ENG Lens
- Canon KJ20x8.2B 20x HD ENG Lens with 2x Zoom Extender
- Dracast Camlux Series Max Bi-Color On-Camera Light with Battery & Charger
- Clamp Mount Multi-Function Double Ball Adapter with Bottom Clamp
