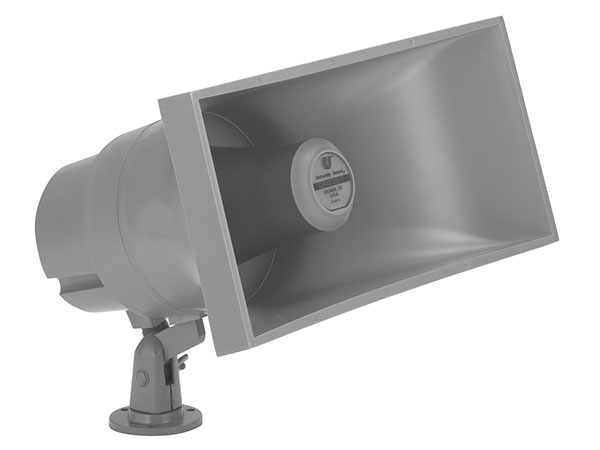

Electro-Voice PA430T Outdoor Paging Horn with 70V Transformer

Rentals starting at

$25.00

Rent-A-Bit low price guarantee!

800-673-7350

Call us or click below to request a quote.

The Electro-Voice PA430T is a 30-watt constant-directivity paging projector for use in any public address or paging application. The driver employs rugged phenolic diaphragms, a 1.5 inch diameter voice coil and a “rim centered” ferrite magnet structure for long life and reliability under extreme operating conditions. A 12 inch connecting cable, color coded for phase, is provided for connecting to the PA430T.

The PA430T includes connections for 25V, 70.7V, and 100V distributed systems and a screwdriver-operated power tap select switch. A nominal 60° horizontal by 40° vertical coverage pattern together with a low-frequency cutoff of 350 Hz provides excellent articulation in demanding applications.

The PA430T is molded from high-impact ultraviolet-inhibiting acrylic-styrene-acrylonitrile (ASA). A positive lock, super tough nylon swivel base and rear housing provides maximum mounting flexibility and ease of installation. Ideal for both indoor and outdoor applications, this driver is well suited for any installation requiring rugged, reliable performance.

Manufacturer

Brand Electro-Voice
Model CDP-848AT

General

Type Compound Diffraction Projector
Color Grey

Connectivity

Input Connectors 1 x 70V tap

Performance Data

Frequency Response 260-10,000 Hz ±5 dB
Note: low-frequency cutoff of 200 Hz.
Impedence 166 ohms @ 30W
Coverage Horizontal Beamwidth: 150° at 2 kHz
Vertical Beamwidth: 110° at 2 kHz (see Figure 2)
Max SPL 105 dB
Wattage 30W

Physical Information

Dimensions (WHD) 10.5 x 20.5 x 20 inches
Weight 16 lb
Construction Large fiberglass compression molding with gray finish, front horn of gray die-cast zinc and phenolic compression-molded inner horns with steel “U” bracket
