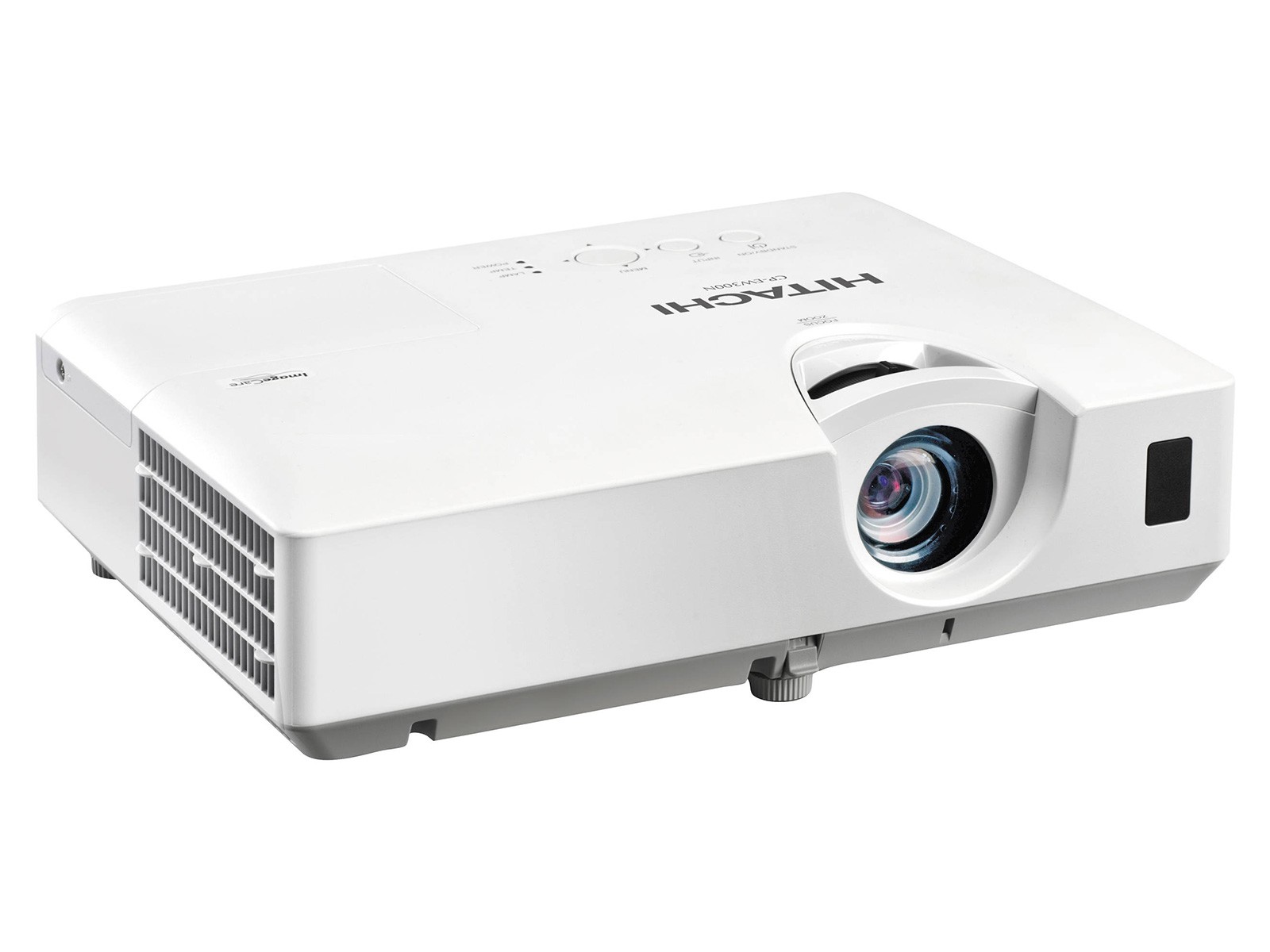

The CP-EW300N LCD Projector from Hitachi is a multimedia projector ideally suited for use in the office or classroom. Its widescreen resolution makes the Hitachi CP-EW300N projector extremely versatile. The projector is HD ready - suitable for watching just about anything. Its relatively modest weight of 6.8 pounds makes the Hitachi CP-EW300N portable, which is a useful when traveling. When you have to set up your projector in a limited period of time, you might be glad to use its vertical keystone correction of +/- 30 degrees.
The LCD projector has a WXGA resolution of 1280 x 800 lumens in a 16:10 format. Its brightness of 3000 lumens is good enough for most environments and its contrast ratio of 2000:1 is satisfactory as well.
The Hitachi CP-EW300N offers the standard connection options: one HDMI input and two VGA inputs, plus a composite video connection for the submission of signals from older video devices. You can control and monitor the projector via RS-232 or Ethernet and the built-in 16W speaker can be connected via audio input; an audio output is available as well.
|Lens||F = 2.1 - 2.3,|
|Zoom / Focus||1.2x manual zoom , manual focus|
|Digital Keystone||Vertical Only|
|Lamp||Lamp Life: 4000 hours
Lamp Model: DT01491

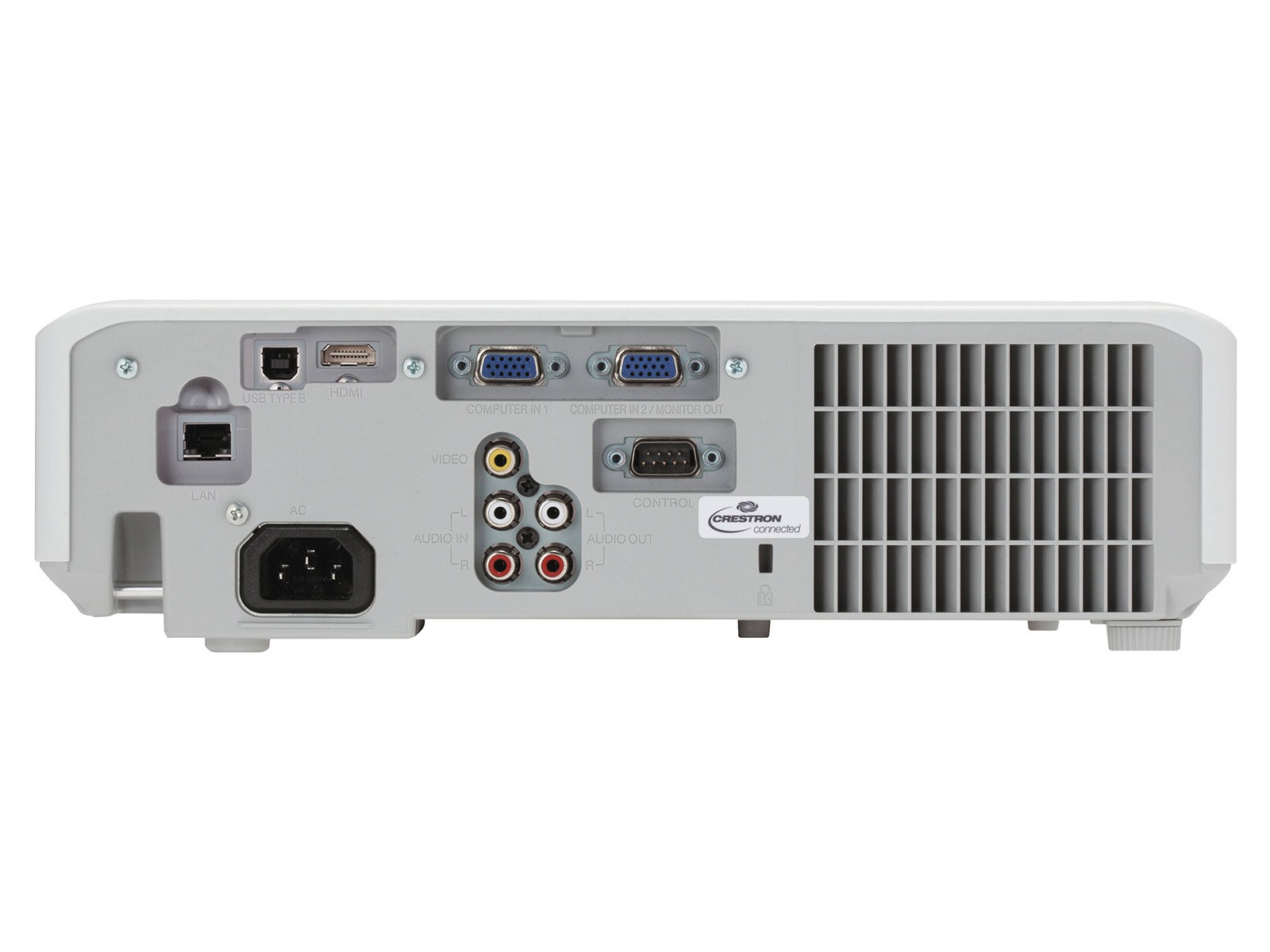

|Input Connectors||Digital Input: HDMI x 1 (HDCP compliant)
Computer Input 1 15-pin mini D-sub x 1
Computer Input 2 15-pin mini D-sub x 1
Video Input: Composite Video RCA jack x 1
Component Video 15-pin mini D-sub x 2 (shared with computer in 1/2)
Audio Input: RCA jack (L/R) x 1
Network LAN: Wired RJ-45 port (10 base-T / 100 base-TX)
USB Type B: x 1 (mouse control)
|Output Connectors||Computer Monitor Output Share with Computer Input 2 (settings must be changed to switch between Input 2 and Monitor Out)
Audio Output: RCA jack (L/R) x 1
|Supported Formats||Computer: VGA, SVGA, XGA, WXGA
WXGA+/SXGA//UXGA (compressed) MAC 16"
H-Sync 31.5 kHz - 106 kHz
V-Sync 56 Hz - 120 Hz
Composite Video: NTSC, NTSC4.43, PAL, PAL-M, -N, SECAM
Component Video: 480i, 480p, 576i, 720p, 1080i, 1080p
HDMI: 480i, 480p, 576i, 720p, 1080i, 1080p,
Computer signal TMDS clock 27 MHz - 150 MHz
|Power||330 Watts 100V - 240V|
|Dimensions (WHD)||12.6" x 3.4" x 9.7"|
|Features||RS232 port, closed-captioning, wired networking
ImageCare is a lamp power control function that combines optimal picture performance with maximum energy savings by decreasing energy usage, improving contrast ratio and lengthening lamp life
