DataVideo DAC7 Analog to SDI Video Converter

Rentals starting at

$45.00

Rent-A-Bit low price guarantee!

800-673-7350

Call us or click below to request a quote.

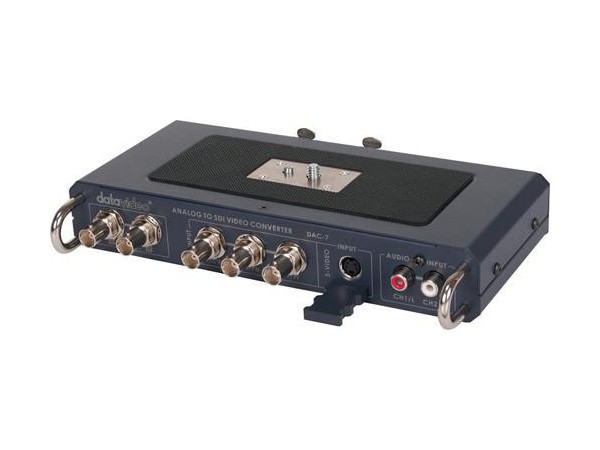

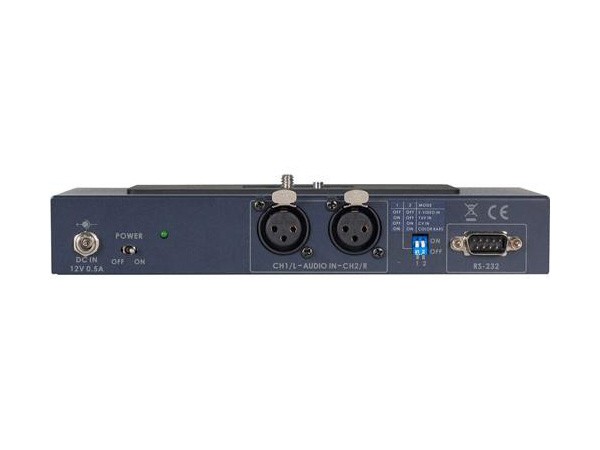

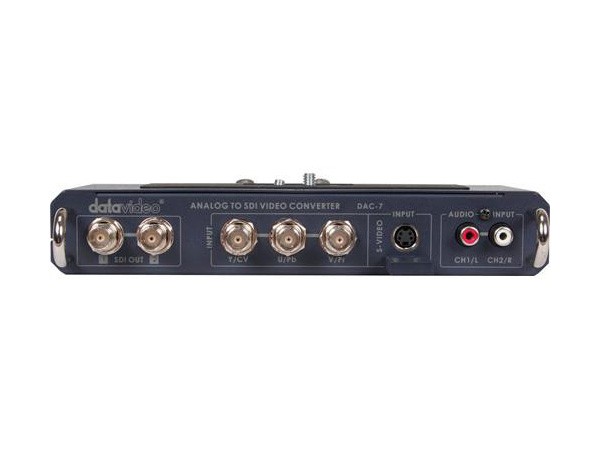

Datavideo’s DAC-7 is a small, extremely portable but powerful mini converter that enables users to convert the output from any camera, including prosumer level cameras, to professional SD-SDI for easy connection to existing professional or broadcast equipment; for example SDI switchers such as Datavideo’s SE-900, SE-1000, or SE-3000 (in SD mode). The DAC-7 can accommodate two channels of audio input via RCA or balanced XLR and embed them both in the SDI signal, requiring only one SDI cable for both video and audio transmission.

Product Highlights:

  • SDI Conversion
  • Converts component, composite, and S-Video into SDI video (SD only)
  • Easy to Mount
  • Mounts between camera and tripod for ease of use
  • NTSC & PAL Versions Available
  • Available in NTSC or PAL video standard (not a dual standard device)

Manufacturer

Brand DataVideo
Model DAC-7

General

Type Analog to SDI Converter
Color Gray

Connectivity

Input Connectors Input: conposite BNC connector, S-Video, Component
Output Connectors 2x BNC connector for SDI signal

Supported Formats

Input Formats 720 x 480 interlaced (NTSC)
720 x 576 interlaced (PAL)

Physical Information

User Controls RS-232 control interface
Power 12 V 0.5A 110/220
Dimensions (WHD) 1.25" H x 8.5" W x4.5" L
Weight 1.5 lbs
