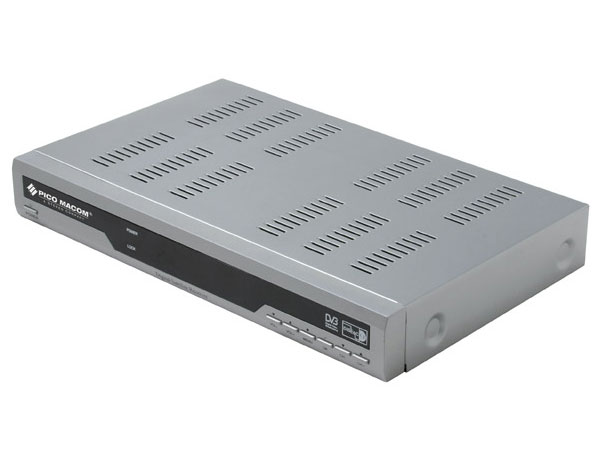

Pico Macom SIRD-FTA Free-to-Air Digital Satellite Receiver

Rentals starting at

$45.00

Rent-A-Bit low price guarantee!

800-673-7350

Call us or click below to request a quote.

Wide C/Ku band 950~2150MHz tuner with dynamic range of -25 to − 65dBm provides optimum performance in low signal conditions. ● Blind scan equipped allows easy and quick identification of all active transponders in a satellite ● Support electronic program guide (EPG) ● Stereo or alternate audio programming selection provides crisp sound and language compatibility

Features include:

  • Up to 4,000 programmable TV and radio channels available
  • MPEG-2 and DVB compression with error correction ensures sharp clear picture quality, fast booting and quick channel changes
  • Easy front panel and remote control access

Manufacturer

Brand Pico Macom
Model SIRD-FTA

General

Type Free-to-Air Digital Satellite Receiver
Color Grey

Connectivity

Input Connectors 1 x IF Satellite input.
1 x RS-232: Serial Port allowing software upgrades
Output Connectors 1 x S-VIDEO output
1 x RCA CV + Audio for TV AV in.
1 x HiFi outputs for stereo set.
1 x IF Satellite output for cascading to other devices
1 x S/PDIF Coaxial output for digital audio (AC3)

Supported Formats

Input Formats Decoding: MPEG-2/MPEG-1 layer I & II
Frequency: 950MHz ~ 2150MHz
Input Level: -65dBm ~ -25dBm
Channel Bandwidth: 36MHz
Output Formats Band: VHF
TV Standard: NTSC M
Output Channel: 3/4 Switchable

Physical Information

User Controls Remote control
Power 13/18V (500mA max) with Short Circuit Protection
Dimensions (WHD) 11.5" x 7.5" x 1.5"
Weight 4.6 lbs
